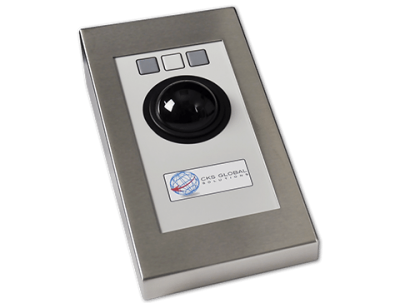

TB50 Industrial Trackerball Cased Front

TB50 Rugged Industrial Trackerball

Build Yours Now!
Clear

Product Description

Designed to replace a standard mouse, the TB50 series trackerball offers excellent precision cursor control and durability. The trackerball is designed to give total reliability throughout the entire range of harsh industrial and commercial environments.

The TB50 series is available with front sealing against water and dust ingress up to IP65 (NEMA 4) standards.

FEATURES AND BENEFITS
3 year warranty as standard
Up to 5 year extended warranties
Steel construction
Embossed keys
Wear / Chemical resistant overlay
50mm (2″) trackerball
IP65 / NEMA 4
Quadrature or Full Protocol interface

Specifications

Keys:Sealed mechanical
Keys Travel:0.4mm
Life Expectation:>1 million switch cycles
Operating Force:160gf ± 50gf
MTBF:60,000 hours
MTTR:20 minutes
Dimensions (mm):124 (W) x 245 (H) x 60 (D) cased
Ball Material:Phenolic Resin
Ball Colour:Black (standard)
Ball Diameter (nominal):50mm (2")
Seal:IP65 (NEMA4)
Weight (nominal):1.3Kg cased
Ball Revolutions:>6 million
Resolution:200 pulses / ball revoultion
Supply Voltage:5V DC ± 5%
Storage Temperature:-40°C to +85°C
Operating Temperature:-20°C to +60°C
Relative Humidity:95%, non-condensing
Vibration:5G, 5-2KHz any plane
Mounting:Horizontal to 90°
Tracking Force (nominal):<50gms
Interface:USB on 2 meter cable
Supply Current:<12mA (PS2 / RS232)
<20mA (USB / PS2)

Options

Interface:USB / PS2 / AT / RS232 / RS422 / RS485 / XT / TTL / DEC / SUN
Customisation:Layout, colour and coding, and physical dimensions
Mechanics:Stainless steel case or bezel

Support

There are no drivers for CKS Industrial Pointing Devices, please contact us using the ‘Product Enquiry’ tab.
