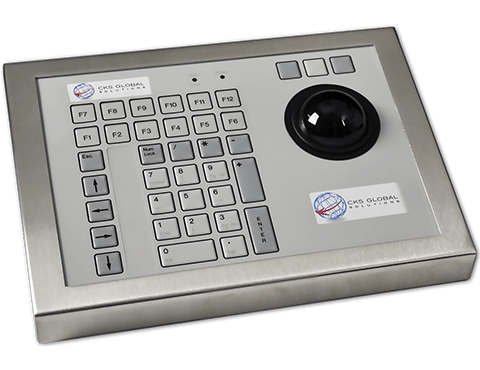

42T Key Industrial Keyboard with Trackerball Cased Front

42 Key Rugged Industrial Keyboard with Trackerball

Build Yours Now!

Product Description

The 42T series keyboard has been designed for operation in areas where the full functionality of a standard 101/102 PC keyboard is not required, but where an integral 50mm (2”) tracker ball is an advantage.

Language and connection variants make this a versatile and easily customisable product. A dual interface, when using PS2, allows engineering override if required.

Its stainless steel finish makes it ideal for tough applications and suitable for wash down areas.

3 year warranty as standard
Up to 5 year extended warranties
Wear & Chemical resistant overlay
Steel construction
>1 million operation switches
Embossed keys for enhanced feel
IP65 / NEMA 4
Alternative mounting
Integral 50mm (2”) trackerball


Keys:Sealed mechanical
Key Travel:0.4mm
Life Expectation:>1 million switch cycles
Operating Force:160gf ± 50gf
Storage Temperature:-40°C to +85°C
Operating Temperature:-20°C to +60°C
Relative Humidity:95%, non-condensing
Supply Voltage:5V DC ± 5%
Supply Current:<75mA (non-illuminated)
Vibration:5G, 5-2KHz any plane
MTBF:60,000 hours
MTTR:20 minutes
Weight (nominal):2.4Kg (cased), 1.25Kg (uncased)
Dimensions (mm):273 (W) x 212.1 (H) x 62 (D) cased
Seal:IP65 (NEMA4)
Interface:USB on 2 metre cable
Ball Colour:Black
Resolution:200 pulses/ball revolution
Tracking Force:50gms (nominal)
Ball Revolutions:>6 million


Interface:USB / PS2 / AT / RS232 / RS422 / RS485 / XT / TTL / DEC / SUN
Customisation:Layout, colour, coding and physical dimensions
Mechanics:Stainless steel case or bezel
Front Sheet:Language and custom variants
Key Illumination:Full or part key illumination via white LED back lighting


There are no drivers for CKS Industrial Keyboards, please contact us using the ‘Product Enquiry’ tab.
