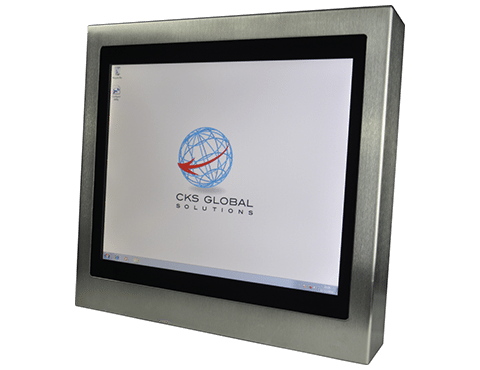

17 Industrial Display Monitor Cased Front
17 Industrial Display Monitor Cased Rear

17″ Rugged Industrial Display

Build Yours Now!
Clear

Product Description

Utilising industrial components, the S17 Slim Monitor offers exceptional quality, long term availability and a standard warranty of 3 years, extending to 5 years if required.

Its stainless steel finish makes it ideal for tough applications and suitable for wash down areas.

FEATURES AND BENEFITS
Built in Watchdog
High IP and NEMA sealing
Stainless Steel construction
17” SXGA 4:3 display (1280×1024)
Case or Bezel mount
75mm VESA mount
Wide temperature range industrial grade components

Specifications

Display Type:350cd/m² TFT-LCD LED backlit
Filter:4mm Margard Polycarbonate
Graphics:SXGA 4:3 (1280x1024) Scaleable
Supply Voltage:12-24VDC or 100-240VAC adaptor
Power:20W max
Storage Temperature:-20°C to +70°C
Operating Temperature:-10°C to +55°C
Dimensions (mm):420 (W) x 402.5 (H) x 92.5 (D) cased
Weight:11Kg

Options

Touchscreen:Resistive / Capacitive
Extended Temperature:-30°C to +60°C
Sealing:IP65 / IP68 / IP69K
Mounting Kits:Wall / Desk / Pedestal

Support

Touchscreen Drivers

Resistive Touchscreens
DriverDateOSSizeDescriptionLink
PenMount Universal16/11/2015Windows Desktop
Windows 2000
Windows XP
Windows Vista
Windows 7
Windows 8/8.1
Windows 10
Windows Server
Windows Server 2003
Windows Server 2008
Windows Server 2012
Windows Embedded Standard
Windows XP Embedded
Windows Embedded Standard 2009
Windows Embedded Standard 7
Windows Embedded POSReady 7
Windows Embedded 8 Standard
Windows Embedded Industrial 8/8.1
6MBPenMount 9000
PenMount 6000 RS-232
PenMount 6000 USB
PenMount PCI USB
PenMount PCI RS-232
Download
Capacitive Touchscreens
DriverDateOSSizeDescriptionLink
PCAP Film09/12/2016Windows 2000
Windows XP
Windows Vista
Windows 7
Windows 8/8.1
20MBFor bonded film Projected Capacitive.Download
PCAP Film09/12/2016Windows 1020MBFor bonded film Projected Capacitive. Windows 10 only.Download
PCAP Glass16/11/2015Windows 2000
Windows XP
Windows Vista
Windows 7
Windows 8/8.1
11MBFor glass Projected Capacitive.Download
