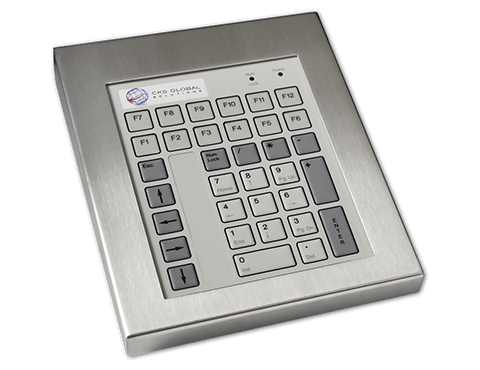

42 Key Industrial Keyboard Cased Front

42 Key Rugged Industrial Keyboard

Build Yours Now!
Clear

Product Description

The 42 series keyboard has been designed for operating in areas where the full functionality of a standard 101/102 PC keyboard is not required.

Language and connection variants make this a versatile and easily customisable product.

A dual interface, when using PS2, allows engineering override if required.

Its stainless steel finish makes it ideal for tough applications and suitable for wash down areas.

FEATURES AND BENEFITS
3 year warranty as standard
Up to 5 year extended warranties
Wear & Chemical resistant overlay
Steel construction
>1 million operation switches
Embossed keys for enhanced feel
IP67
Alternative mounting

Specifications

Keys:Sealed mechanical
Key Travel:0.4mm
Life Expectation:>1 million switch cycles
Operating Force:160gf ± 50gf
Storage Temperature:-40°C to +85°C
Operating Temperature:-20°C to +60°C
Relative Humidity:95%, non-condensing
Supply Voltage:5V DC ± 5%
Supply Current:<50mA (non-illuminated)
Vibration:5G, 5-2KHz any plane
MTBF:60,000 hours
MTTR:20 minutes
Weight (nominal):2Kg (cased), 1.35Kg (uncased)
Dimensions (mm):175 (W) x 234.6 (H) x 32.4 (D) cased
Seal:IP67
Interface:USB on 2 metre cable

Options

Interface:USB / PS2 / AT / RS232 / RS422 / RS485 / XT / TTL / DEC / SUN
Mechanics:Stainless steel case or bezel
Customisation:Layout, colour and coding and physical dimensions
Front Sheet:Language and custom variants
Key Illumination:Full or part key illumination via white LED back lighting

Support

There are no drivers for CKS Industrial Keyboards, please contact us using the ‘Product Enquiry’ tab.
