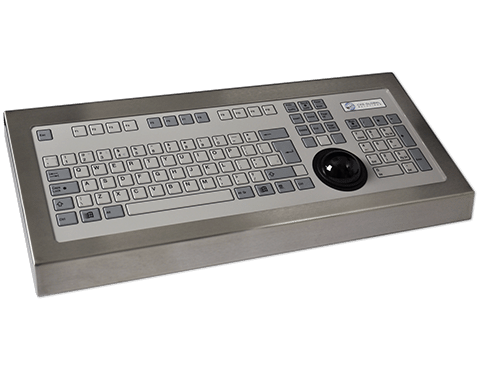

128T Key Industrial Keyboard with Trackerball Cased Front

128 Key Rugged Industrial Keyboard with Trackerball

Build Yours Now!
Clear

Product Description

The 128T series keyboard has been designed as a direct rugged replacement for a standard 101/102 PC keyboard which includes an integrated 50mm (2”) phenolic resin trackerball.

Language and connection variants make this a versatile and easily customisable product.

Ideal for tough applications and suitable for wash down areas.

FEATURES AND BENEFITS
3 year warranty as standard
Up to 5 year extended warranties
Wear & Chemical resistant overlay
Steel construction
>1 million operation switches
Embossed keys for enhanced feel
IP65 (NEMA 4)
Alternative mounting
Integral 50mm (2”) trackerball

Specifications

Keys:Sealed mechanical
Key Travel:0.4mm
Life Expectation:>1 million switch cycles
Operating Force:160gf ± 50gf
Storage Temperature:-40°C to +85°C
Operating Temperature:-20°C to +60°C
Relative Humidity:95%, non-condensing
Supply Voltage:5V DC ± 5%
Supply Current:<75mA (non-illuminated)
Vibration:5G, 5-2KHz any plane
MTBF:60,000 hours
MTTR:20 minutes
Weight (nominal):3.4KG (cased), 1.25 (uncased)
Dimensions (mm):497 (W) x 240 (H) x 44.5 (D) cased
Seal:IP65 (NEMA4)
Interface:USB on 2 metre cable
Ball Colour:Black
Resolution:200 pulses/ball revolution
Tracking Force:50gms (nominal)
Ball Revolutions:>6 million

Options

Interface:USB / PS2 / AT / RS232 / RS422 / RS485 / XT / TTL / DEC / SUN
Customisation:Layout, colour, coding and physical dimensions
Mechanics:Stainless steel case or bezel
Front Sheet:Language and custom variants
Key Illumination:Full or part key illumination via white LED back lighting

Support

There are no drivers for CKS Industrial Keyboards, please contact us using the ‘Product Enquiry’ tab.
