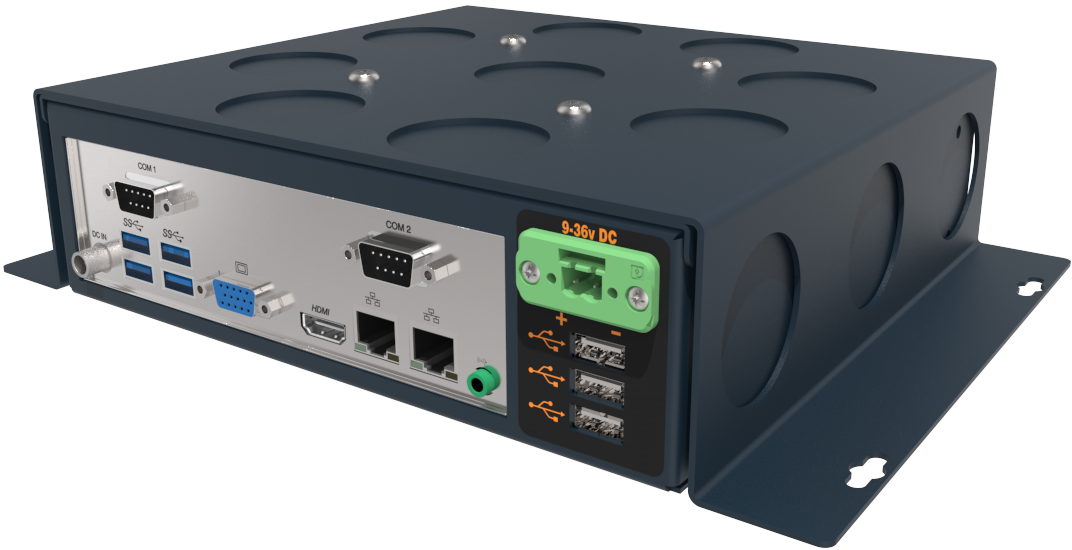

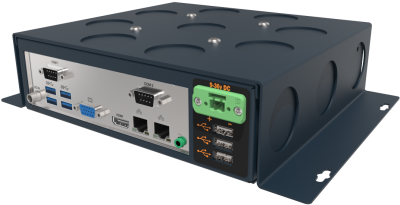

SB200 Industrial Box Computer Front
SB200 Industrial Box Computer Rear

SB200 Rugged Industrial Box Computer

Build Yours Now!
Clear
Category:

Product Description

The SB200 Box Computer is a robust, low power and fanless computer that utilises the Intel BayTrail-M/D Quad Core processor as well as using quality wide temperature range industrial components.

The chassis is built using galvanized steel with attachable mounts which enable it to be fixed in any position, including rear mounting to a monitor. The SB200 Box Computer is an ideal rugged industrial replacement to commercial grade computers – all in a compact footprint.

The SB200 Box Computer is suitable for use in applications in digital signage, kiosk computers, enclosures, wall mounting, rear mounting to monitors using compatible attachable mounts.

FEATURES AND BENEFITS
2 Year Warranty as Standard
Up to 5 Years Extended Warranty
Intel BayTrail-M/D 2.0GHz Quad Core
Wide temperature range industrial grade components
Rugged steel construction
Compact footprint

Specifications

MOTHERBOARDBT
SYSTEM
Processor:Intel BayTrail J1900 2.0GHz Quad Core
Core Number:4
Chipset:SoC
Graphics:Intel Gen7 up to 1920 x 1200
Memory:Up to 16GB (DDR3L-1333)
I/O
Ethernet:2 x 10/100/1000
Video:VGA, HDMI
USB:2 x USB2.0 & 2 x USB3.0
Serial:4 x RS232 (3 x RS-232/422/485)
LPT:1
Audio:1 x Line Out, 1 x Mic In
PS/2:1 x Keyboard, 1 x Mouse
EXPANSION
Mini-PCIe:1 x Half-Sized
PCIe:N/A
PCI:N/A
STORAGE
HDD:500GB SATA
SSD:Up to 128GB SATA
POWER
Input:6-36 VDC, 24VDC or 12-18VDC adaptor
Consumption:25W
MECHANICAL
Dimensions:215 (W) x 63 (H) x 200 (D)
Weight:2KG
Mounting:Wall Mount Brackets
ENVIRONMENTAL
Operating Temperature:0°C to +50°C (Ambient)
Storage Temperature:-20°C to +70°C
Sealing:IP22
SOFTWARE
Operating System:Windows 7 Embedded 32-bit / 64-bit
Windows 7 Professional 32-bit / 64-bit
Windows 10 IoT Enterprise LTSB 32-bit / 64-bit
DOS
Other:Contact Us

Support

Motherboard Drivers

BT - Intel BayTrail J1900 2.0GHz Quad Core
DriverDateOSSizeDescriptionLink
Full Package25 SEPT 2017Windows 10 64-bit469MBINF ver: 10.1.1.8
VGA ver: 15.33.37.64.4242
LAN ver: 10.021
AUDIO ver: 7560
COM ver: 1.0.2011.1109
TXE ver: 1.1.4.1145
MBI ver: 604.10125.2655.573
Download
Full Package25 SEPT 2017Windows 10 32-bit414MBINF ver: 10.1.1.8
VGA ver: 15.33.43.4425
LAN ver: 10.021
AUDIO ver: 7560
COM ver: 1.0.2011.1109
TXE ver: 1.1.4.1145
MBI ver: 1.1.70.305.16316
Download
Full Package25 SEPT 2017Windows 7 64-bit455MBINF ver: 9.4.4.4.1006
VGA ver: 15.33.13.64.3408
LAN ver: 7112
AUDIO ver: R282
COM ver: 1.0.2011.1109
USB3 ver: 3.0.0.19
KMDF ver: 1.11
TXE ver: 1.1.0.1089
Download
Full Package25 SEPT 2017Windows 7 32-bit315MBINF ver: 9.4.4.4.1006
VGA ver: 36.15.0.1064
LAN ver: 7112
AUDIO ver: R282
COM ver: 1.0.2011.1109
USB3 ver: 3.0.0.19
KMDF ver: 1.11
TXE ver: 1.1.0.1089
Download
